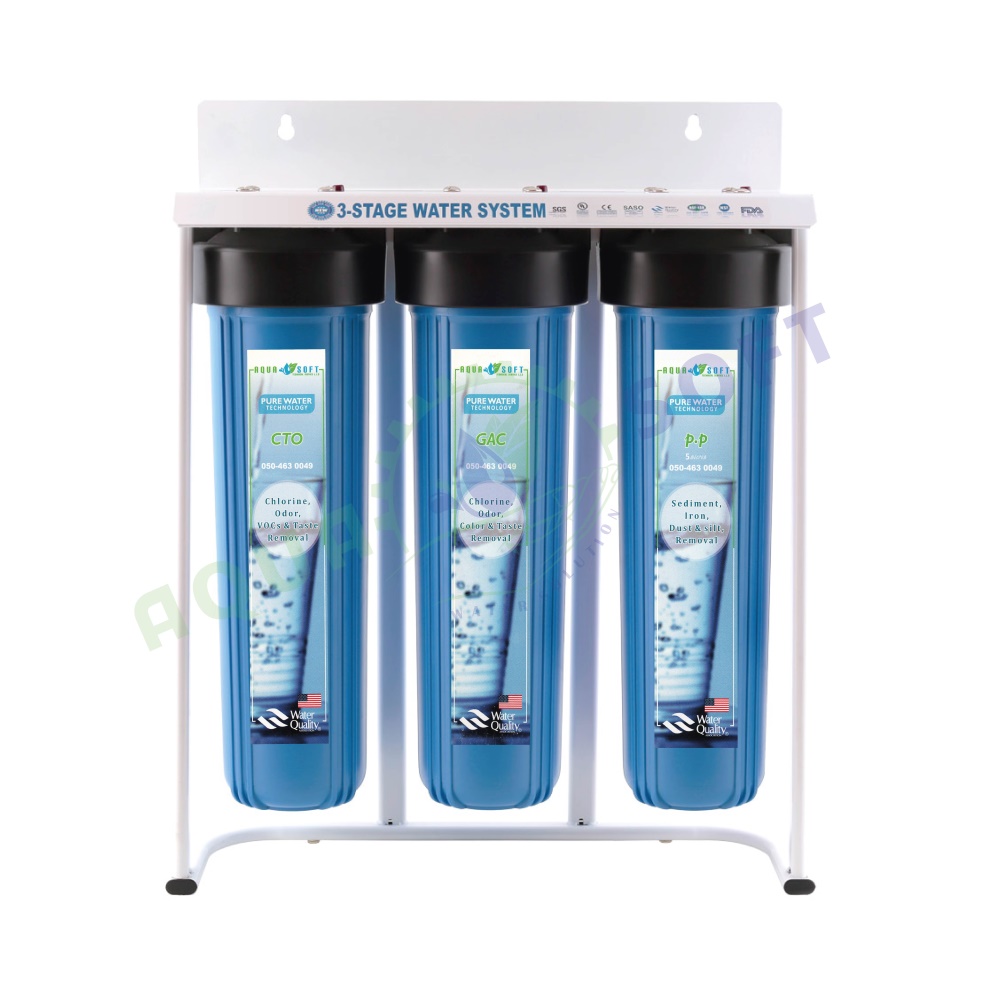

Aqua Soft 3-Stage Whole House Water Filtration System

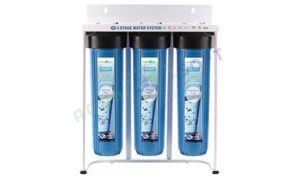

3-stage 20″x 4.5″ Whole House Water Filtration System
With lots of quality advantages for your water, Big Blue Jumbo 20” Triple Stage Whole House
Water Filtration System Is one of the best products produced by Aqua Soft pro? Aqua Soft Pro Big Blue Jumbo 20” Triple Stage Whole House Water Filtration System remove chlorine and other chemical tastes, odors’ plus dirt, sediment, making water cleaner, and safer for your whole house.
The Big Blue Jumbo 20” Triple Stage Whole House Water Filtration System is designed for comprehensive filtration of water in residential or commercial applications. This system typically uses three 20-inch filter cartridges to ensure high-quality water throughout the entire building. Here’s a detailed look at the specifications, benefits, and considerations for such a system

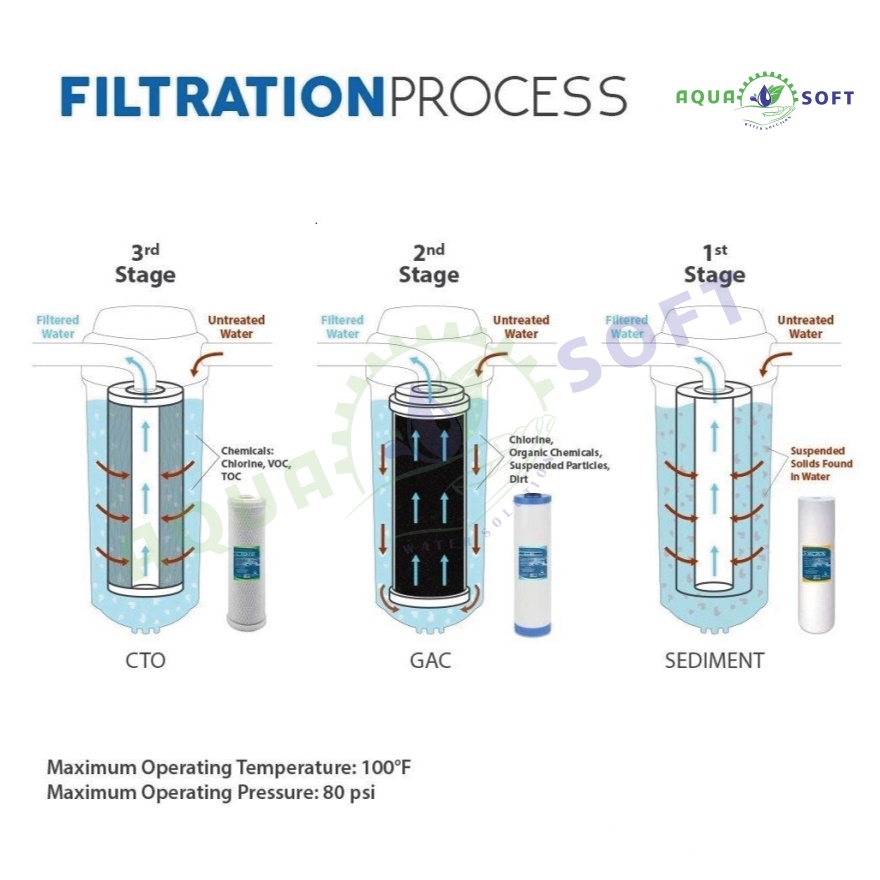

Features of a Three-Stage Filter System
*1. Multi-Stage Filtration:

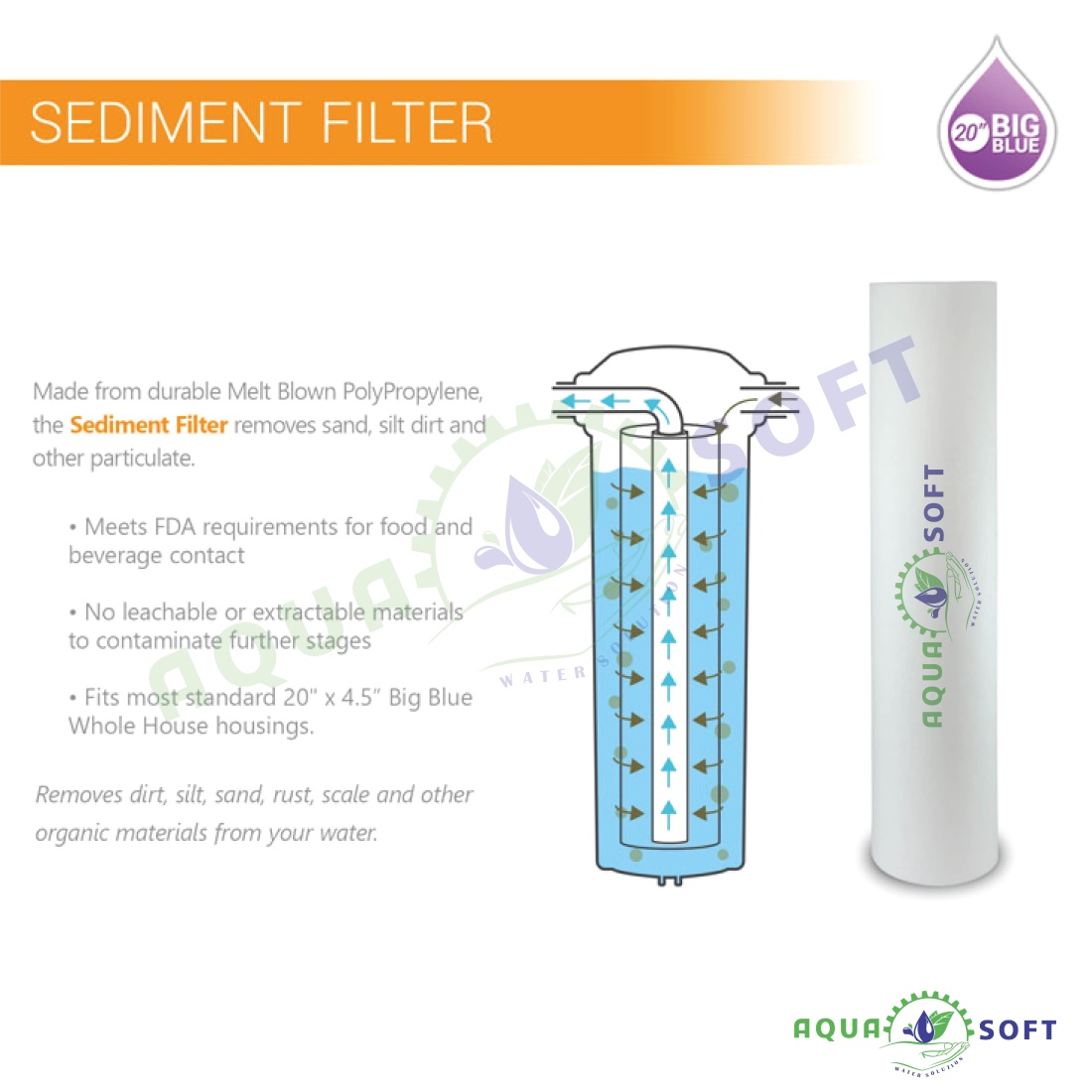

- Stage 1: Sediment Filtration
- Purpose: Removes large particles such as sand, silt, rust, and other sediments from the water.
- Typical Filter Media: Pleated polypropylene, wound string, or melt-blown filters.
- Micron Rating: Commonly 5 microns, but can range from 1 to 50 microns depending on the specific filter.
- Stage 2: Carbon Filtration
- Purpose: Reduces chlorine, chloramines, volatile organic compounds (VOCs), and other chemicals that affect taste and odor.
- Typical Filter Media: Activated carbon block or granular activated carbon (GAC).
- Micron Rating: Usually 5 microns for carbon blocks, 10-20 microns for GAC.
- Stage 3: Specialized Filtration
- Purpose: Provides additional purification tailored to specific needs, such as removing heavy metals, specific contaminants, or polishing the water.
- Typical Filter Media:
- Activated Carbon Block: Additional chemical and taste/odor removal.
- Catalytic Carbon: For contaminants like chloramines.
- Reverse Osmosis (RO) Membrane: For advanced contaminant removal (in some systems).
- Iron Filter: For removing iron and manganese.
- UV Filter: For disinfection (less common in standard setups).
*2. High Flow Rate:
- Design: Often designed to handle high flow rates, making them suitable for whole house applications or high-demand areas.
- Filter Size: Larger filter cartridges, such as 20-inch “Big Blue” filters, can manage higher water volumes and pressure without significant pressure drop.
**3. Extended Filter Life:
- Capacity: Larger filters generally have a greater capacity to hold contaminants, extending the time between filter changes and reducing maintenance frequency.
- Durability: Designed for longevity and to withstand larger volumes of water.
*4. Improved Water Quality:
- Comprehensive Purification: Each stage targets different types of impurities, resulting in cleaner, safer, and better-tasting water.
- Contaminant Removal: Effective at removing sediments, chlorine, VOCs, heavy metals, and other specific contaminants depending on the filter configuration.
*5. Ease of Maintenance:
- Filter Replacement: Modular design makes it straightforward to replace individual filters as needed.
- System Monitoring: Some systems include features for monitoring filter performance or pressure drops.
**6. Durable Construction:
- Housing: Often made from high-strength materials like polypropylene or polycarbonate to handle high pressures and protect the filters.
- Connections: Standardized inlet and outlet connections for easy integration into existing plumbing systems.
*7. Versatile Applications:
- Whole House Filtration: Suitable for residential, commercial, or industrial applications where comprehensive water treatment is required.
- Customizable: Can be configured with different types of filters based on specific water quality needs.
*8. Certifications and Standards:
- Safety Standards: Many systems are certified to meet NSF/ANSI standards for safety and performance.
- Compliance: May comply with local or national water quality regulations.
*9. Installation and Setup:
- Installation: Typically involves mounting the filter system in-line with the main water supply. Some systems may require professional installation, especially if complex or large.
- Pre-Filter and Post-Filter Options: Some systems offer options for additional pre-filters or post-filters based on specific requirements.
Summary
Aqua Soft Pro a three-stage filtration system provides robust and comprehensive water purification by utilizing a multi-stage approach to target various contaminants. With high flow rates, extended filter life, and improved water quality, it is a versatile solution for both residential and commercial applications. The design emphasizes durability, ease of maintenance, and customizable filtration options to address a wide range of water quality issues. Please Contact; +971 50 4630049 24/7
Technical Specifications:
- System Overview:
- Type: Triple-stage whole house water filtration system

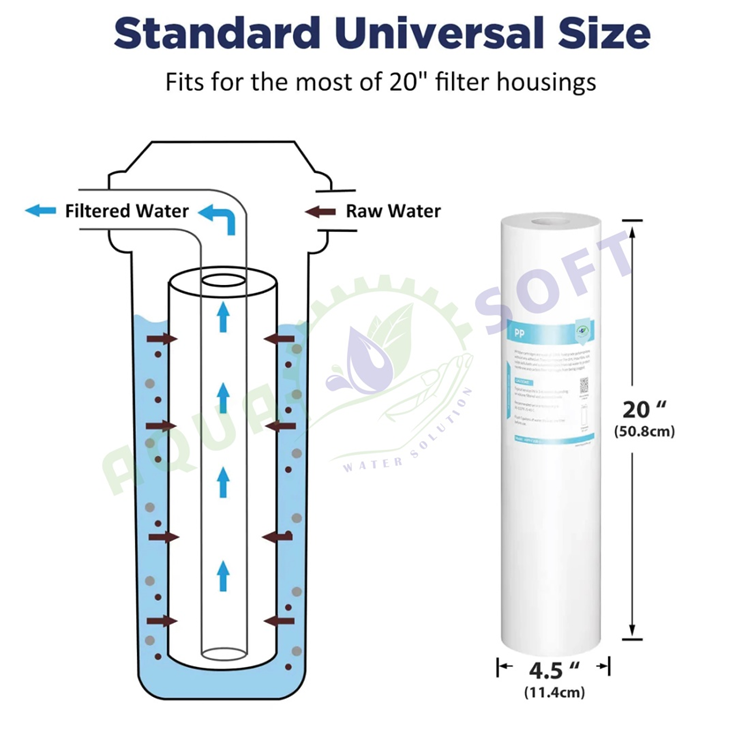

- Filter Size: 20 inches (length) x 4.5 inches (diameter)
- Housing Size: “Big Blue” refers to the large size of the filter housings, designed for high flow rates and extended filter life
- Application: Suitable for residential, commercial, or industrial water filtration
- Stage 1 – Sediment Filter:
- Type: Pleated or wound sediment filter
- Micron Rating: Typically 5 microns or 10 microns (varies by filter choice)
- Material: Polypropylene or polyester
- Purpose: Removes large particles like sand, silt, and rust
- Stage 2 – Carbon Filter:
- Type: Activated carbon block or granular activated carbon (GAC)
- Micron Rating: Typically 5 microns (block), 10-20 microns (GAC)
- Material: Activated carbon (coal-based or coconut shell)
- Purpose: Reduces chlorine, chloramines, and other chemicals; improves taste and odor
- Stage 3 – Specialized Filter:
- Type: Depending on the system, this stage might include:
- Additional Carbon Block: For enhanced chemical and taste/odor removal
- Catalytic Carbon Filter: For specific contaminants like chloramines
- Iron Filter: For removing iron and manganese
- UV Filter: For disinfection (less common in standard setups)
- Micron Rating: Typically 1-5 microns
- Purpose: Provides additional purification based on specific needs

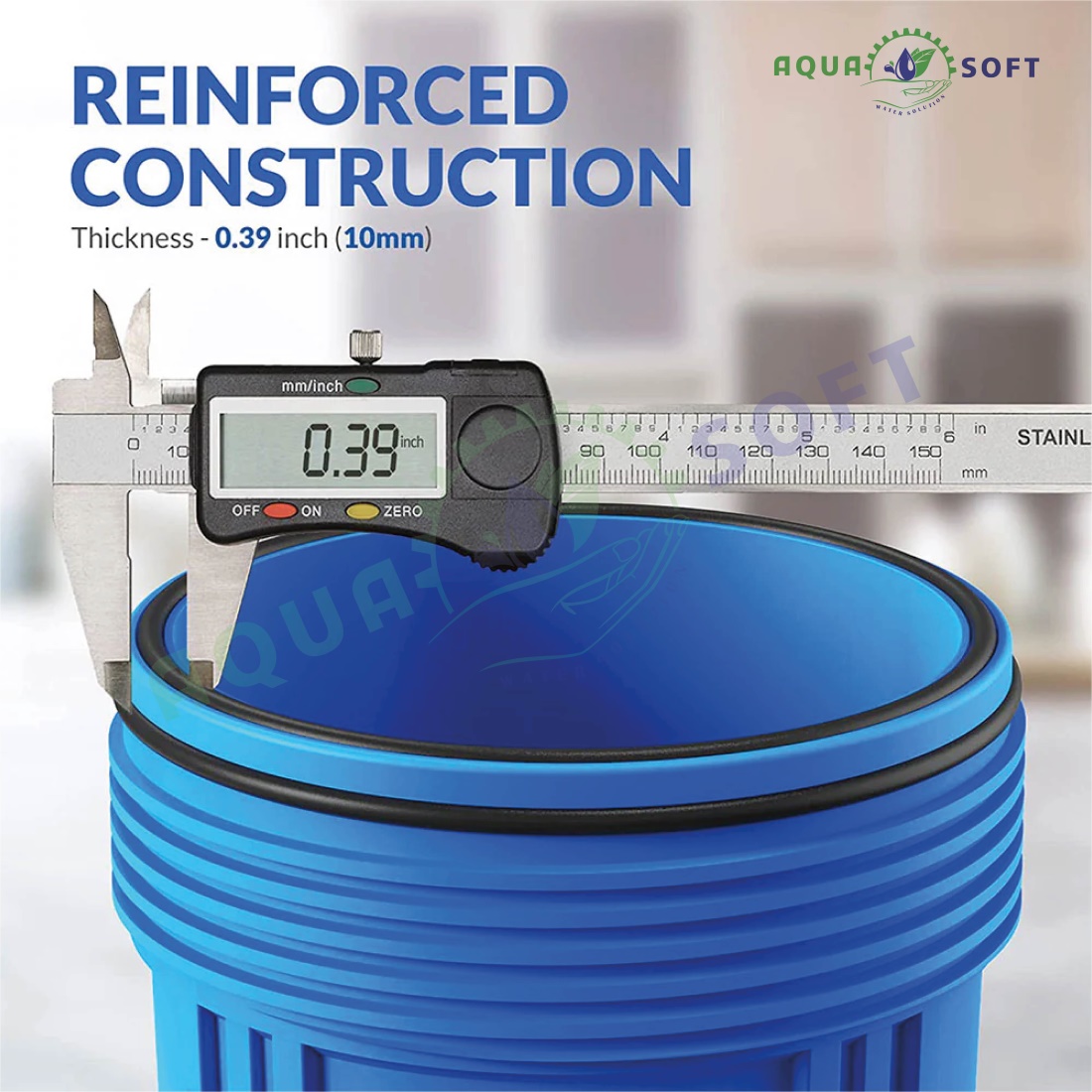

- Housing and Design:
- Material: High-strength polypropylene or polycarbonate
- Connection Type: Typically 1-inch or 1.5-inch NPT (National Pipe Thread) inlet and outlet
- Pressure Rating: Usually rated for up to 100-150 psi
- Dimensions:
- Filter Housings: About 24 inches in length (including fittings) x 6 inches in diameter
- Overall System Size: Larger footprint due to the three-stage design
- Performance Specifications:
- Flow Rate: Generally ranges from 10-20 gallons per minute (GPM), suitable for high water usage
- Service Life:
- Sediment Filters: 6-12 months
- Carbon Filters: 6-12 months
- Specialized Filters: Varies depending on type
- Certifications and Standards:
- Certifications: Look for NSF/ANSI certifications for performance and safety
- Compliance: Adheres to local or national water quality standard
- Sediment Filters Life: Approx. 4 months
- Carbon Filter Life: Approx. 4 months
- Maximum operating pressure: 90PSI
- Operating temperature: 40-100°F (5-40°C)
- Dimensions: 27.5″ Height x 24.5″ Width x 8″ Depth
- Weight: Approx. 42 lbs.
- Feed water pH range: 4.0-10.0
- Preferable feed water pressure range: 20-90PSI to get the best filtration results keeps it less than 60PSI.
- Maximum feed water TDS‡: 1000PPM
- Estimated Flow Rate:
- 1-40* GPM for 1″ Inlet/Outlet
- 1-35* GPM for ¾” Inlet/Outlet
Note: Please make sure you have selected the correct option before checkout.
3-Stage 20″x 4.5″ Whole House Big Blue Water Filtration System 1″ / 1.5”/ 2” NPT Ports
Aqua SoftPro Are you concerned with the quality of the water at your cottage or lake house? Aqua SoftPro Water Filter Get clean and clear water for your whole house by removing dirt, discoloration, odors, and bad taste with our 3-stage Whole House system, perfect for E.coli Bacteria Well water system.
Aqua SoftPro,
Aqua SoftPro-Super Whole House Water Filters FOR WELL WATER AND MUNICIPAL WATER Source Safe, Clean Water for Drinking, Bathing & Washing,
Aqua SoftPro -Super (BB20-03) Whole House Water Filter Systems are modular systems that allow you to custom order a water filter system for your water treatment requirements. This ensures removal of all contaminants pollutants and turbidity found in your water so you have the best combination of water pressure and water quality.
Select one of the following options during your checkout:
- ¾” Ports (Inlet/Outlet Sizes): Flow Setup Direction is Right to Left (Right Inlet – Left Outlet)
- 1″ Ports (Inlet/Outlet Sizes): Flow Setup Direction is Right to Left (Right Inlet – Left Outlet)
- 5″ Ports (Inlet/Outlet Sizes): Flow Setup Direction is Right to Left (Right Inlet – Left Outlet)
Pre-loaded Filter Cartridges:
- 1st Stage: 5 Micron Polypropylene Sediment Filter
- 2nd Stage: 1 Micron Polypropylene Sediment Filter

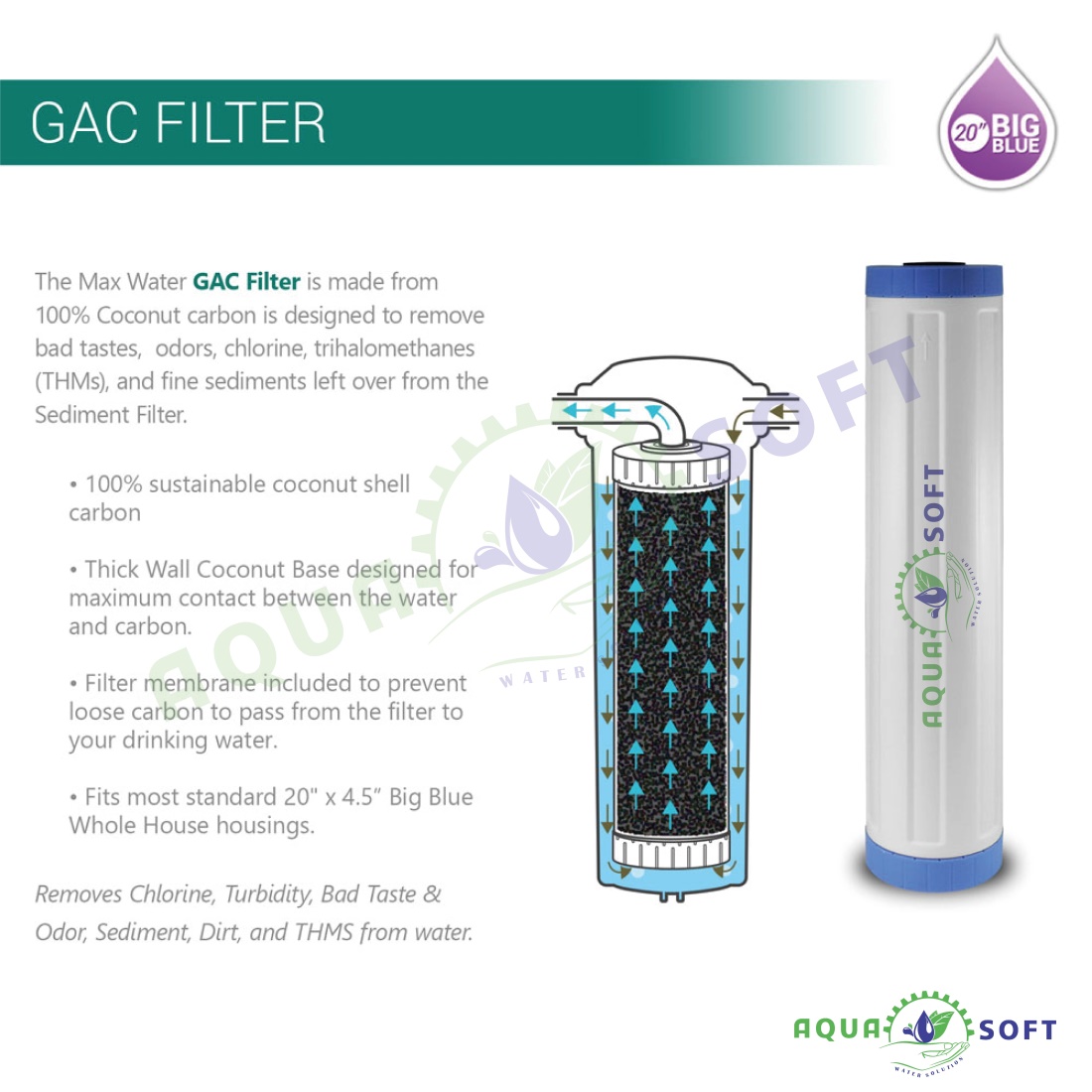

- 3rd Stage: (GAC) Granulated Activated Carbon Filter
Vertical Hydraulic Gauge
Aqua SoftPro Having a pressure gauge is helpful in monitoring your incoming water pressure, internal unit pressure & when to replace the filters. It’s best to replace the filters when you see changes in reading start, an increasing pressure drop is a good indication that the cartridges are starting to clog with particulate or the filter’s media is exhausted as the water inside the system cannot pass through the filters normally.

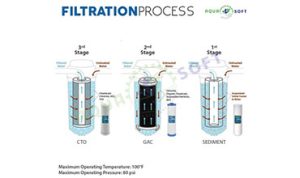

Removes/Reduces:
Stage 1: Big-Blue Pre-Filters
the first stage is 5 microns pre-filter designed to remove sediment as well as other biological contaminants. It comes in two options with varying proportions of flow rate and sediment removal.

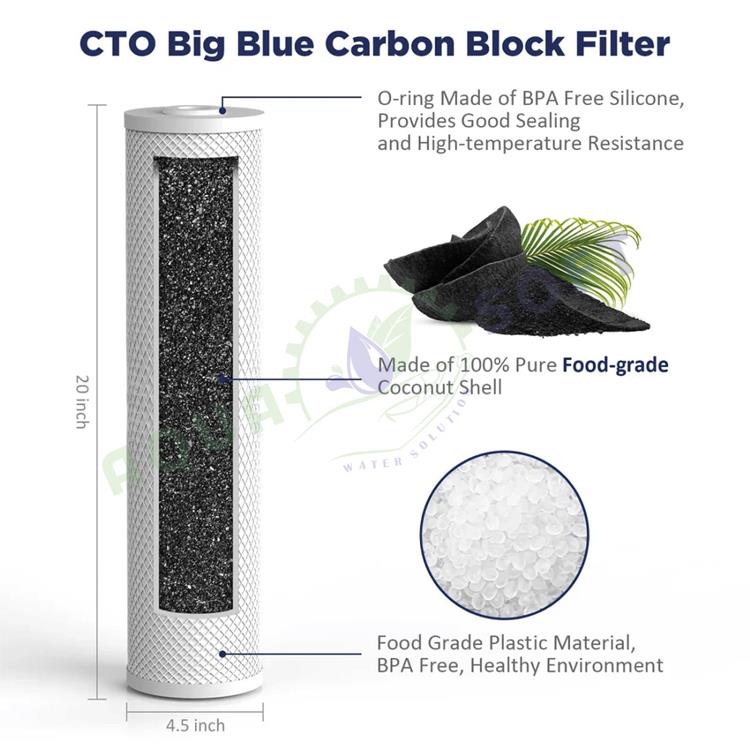

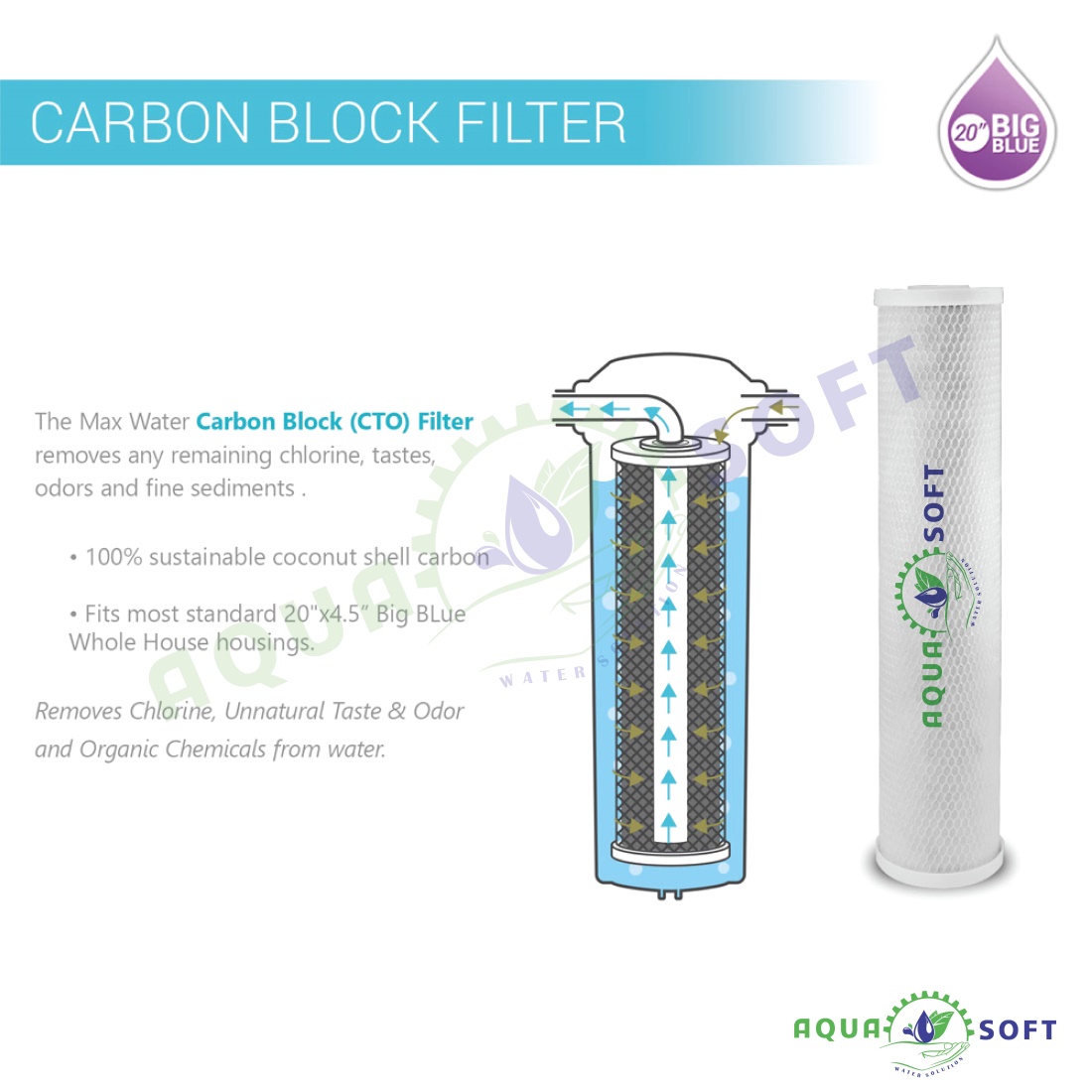

Stage 2: Big-Blue Carbon Block Filters
Aqua SoftPro uses a very special blend of catalyst combined to reduce contaminants by 99.99% or more, including Volatile Organic Compounds (VOC’s), lead and other heavy metals, cysts, E Coli, Guardia, Cryptosporidium, taste and odors.
Stage 3: Big-Blue Pre-Filters
the first stage is 5 microns pre-filter designed to remove sediment as well as other biological contaminants. It comes in two options with varying proportions of flow rate and sediment removal.
Easy Installation, Simple Maintenance
Aqua SoftPro Whole House Water Filters come completely ready-to-assemble, includes a shut-off valve for cartridge cleaning and replacement. A professional plumber is required for installation. Aqua Soft Whole House Water Filter includes a mounting bracket, ball valves and spanner. (Not included cartridge filters)
Includes:

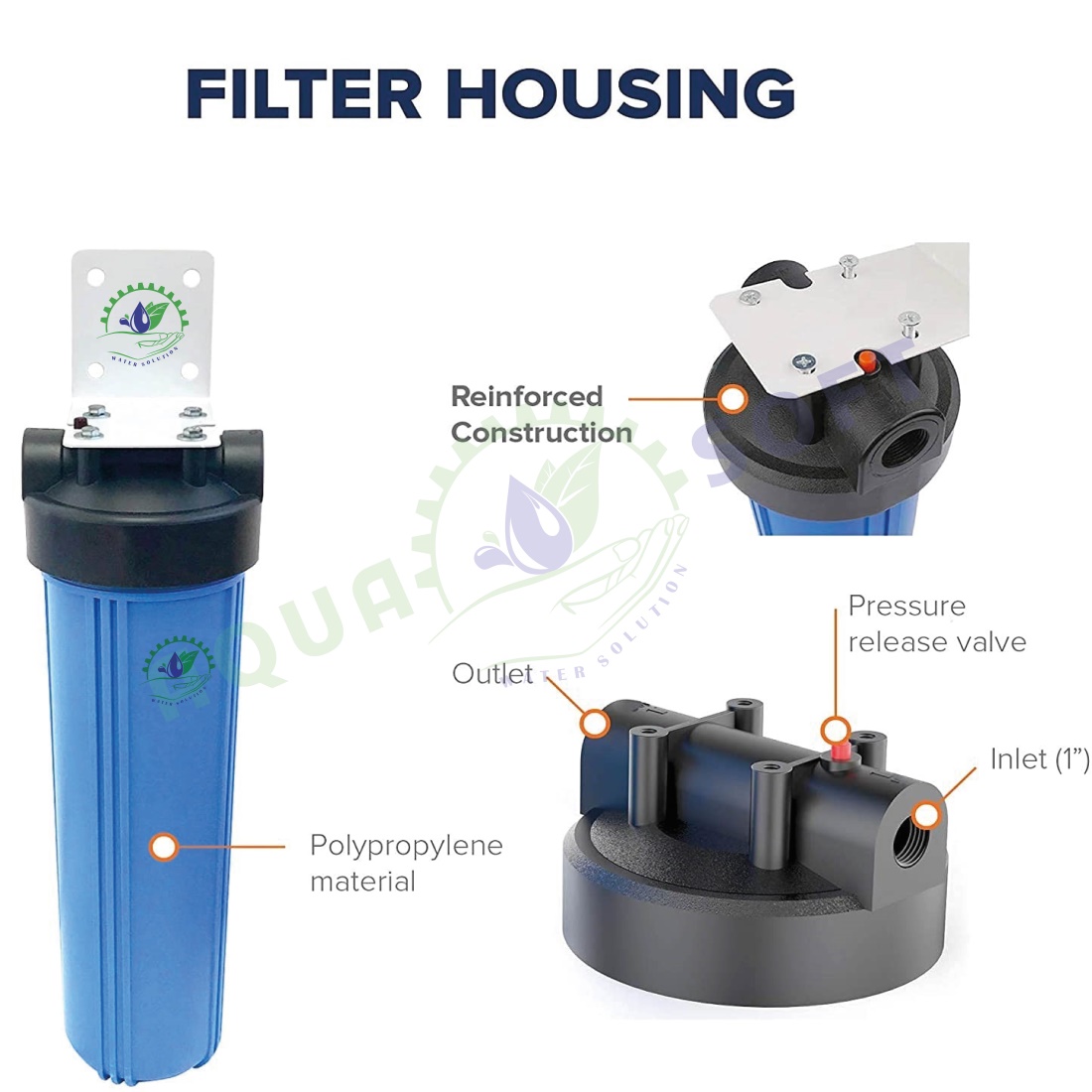

- 1 x 20″ x 4.5″ Clear Big Blue Double O-ring Filter Housing with Pressure Release Button
- 2 x 20″ x 4.5″ Big Blue Double O-ring Filter Housings with Pressure Release Buttons
- 2 x 60MM Liquid Pressure Gauges (Range: 10 Kg/PSI)
- 1 x 5-micron PP Sediment Filter, Dual Gradient Density Filtration.
- 1 x 1-micron PP Sediment Filter
- 1 x Coconut Shell Granulated Activated Carbon (GAC) Filter
- 1 x Heavy-duty PVC Ball Valve + 1 x Hex Nipple.
- 1 x Filter Housing Wrench.
- 1 x 3-stage Wall Mounting Metal Bracket.
- Plummer should set it up during the installation.
- 2-year Manufacturer’s Limited Guaranty.
