A 1-stage filtration system using 20-inch filters is typically designed for specific, single-purpose filtration needs. Here’s a breakdown of the technical specifications and benefits you might expect from such a system:
Technical Specifications for a 1-Stage, 20-Inch Filtration System
- General Information:
- Type: Single-stage water filtration system
- Application: Residential, commercial, or industrial water treatment
- Filter Size: 20 inches (length) x 4.5 inches (diameter) or similar
- Filter Type and Media:
Type: Depending on the filtration goal, the filter could be:

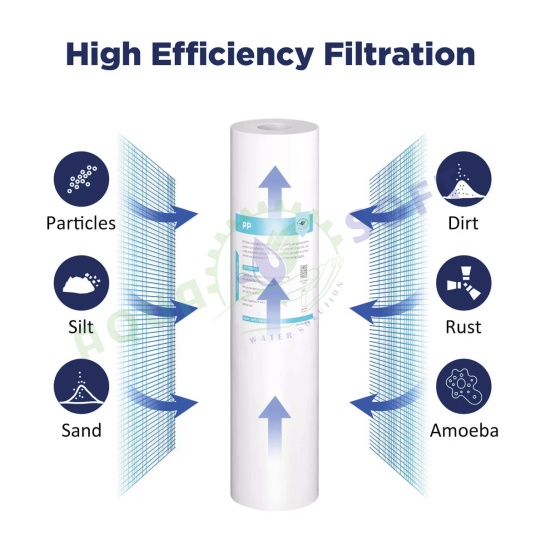

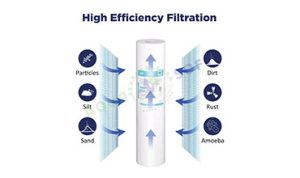

- Sediment Filter: For removing particulate matter
- Activated Carbon Filter: For removing chlorine, chemicals, and improving taste/odor
- Catalytic Carbon Filter: For removing specific contaminants like chloramines
- Other Specialty Filters: Such as iron, lead, or UV filters
- Sediment Filters: Polypropylene, polyester

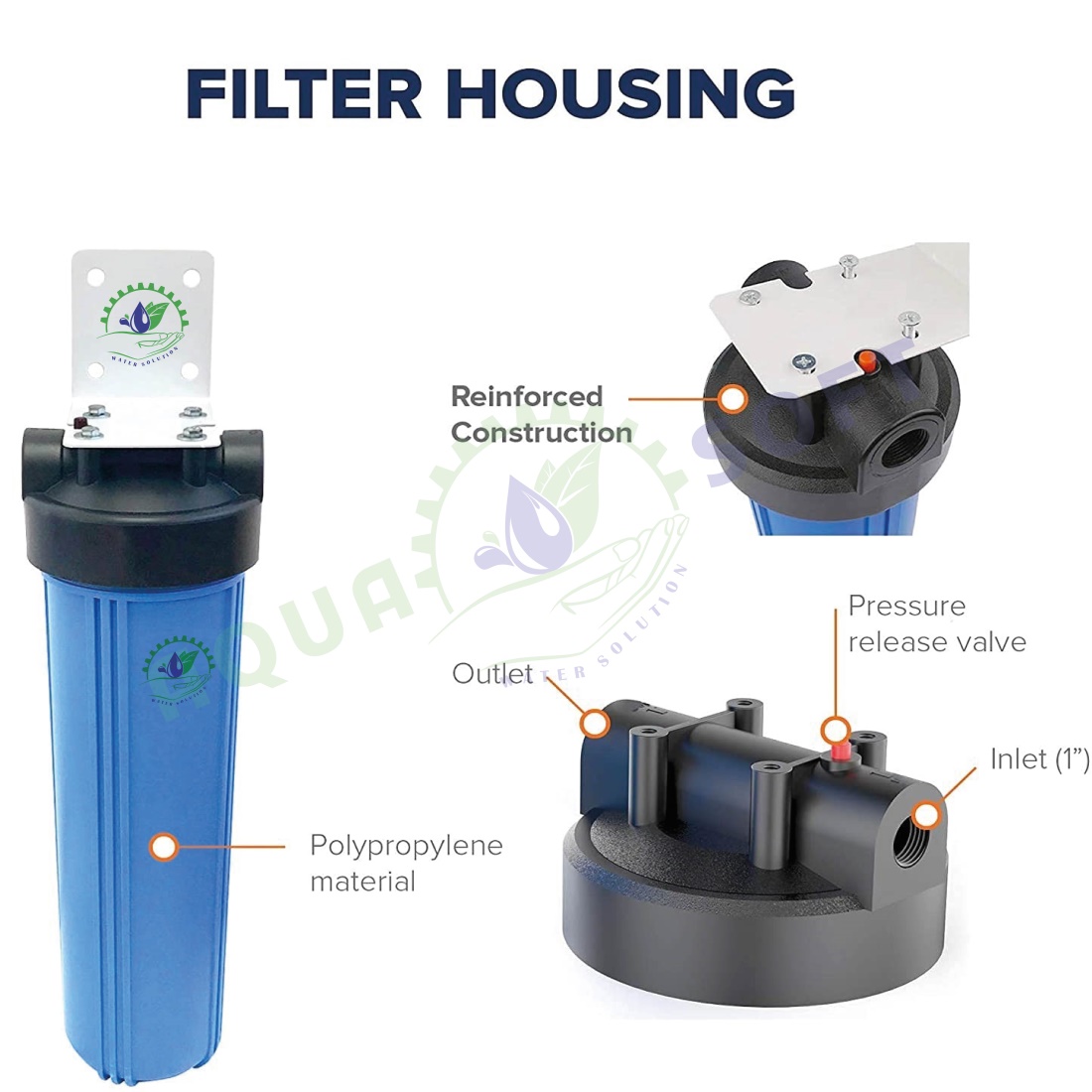

- Housing and Design:
- Material: Commonly made from durable plastics like polypropylene or polycarbonate
- Connection Type: Standard inlet and outlet connections, usually 1/4-inch or 3/8-inch NPT (National Pipe Thread)
- Pressure Rating: Typically rated for 100-150 psi or higher, depending on the filter design

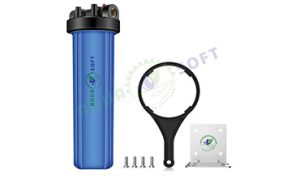

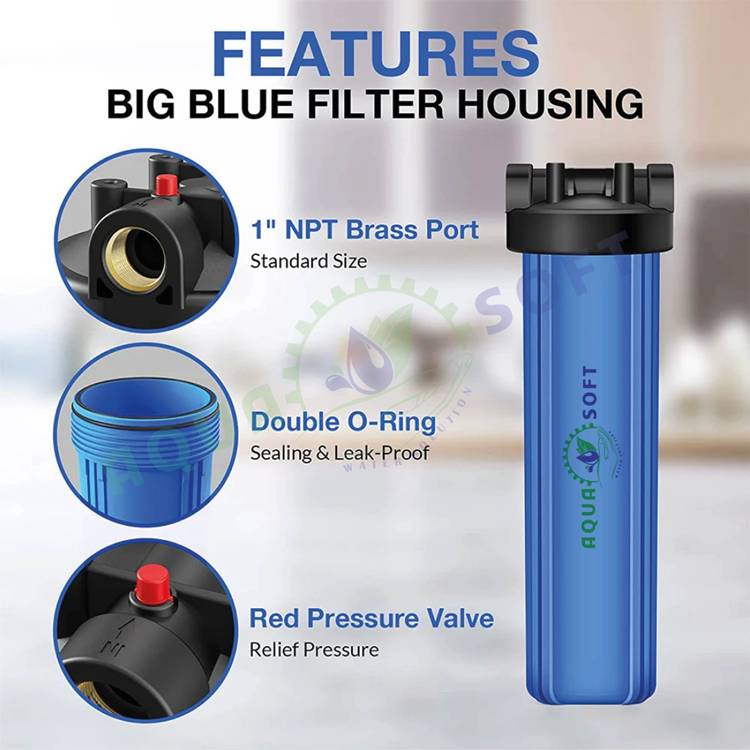

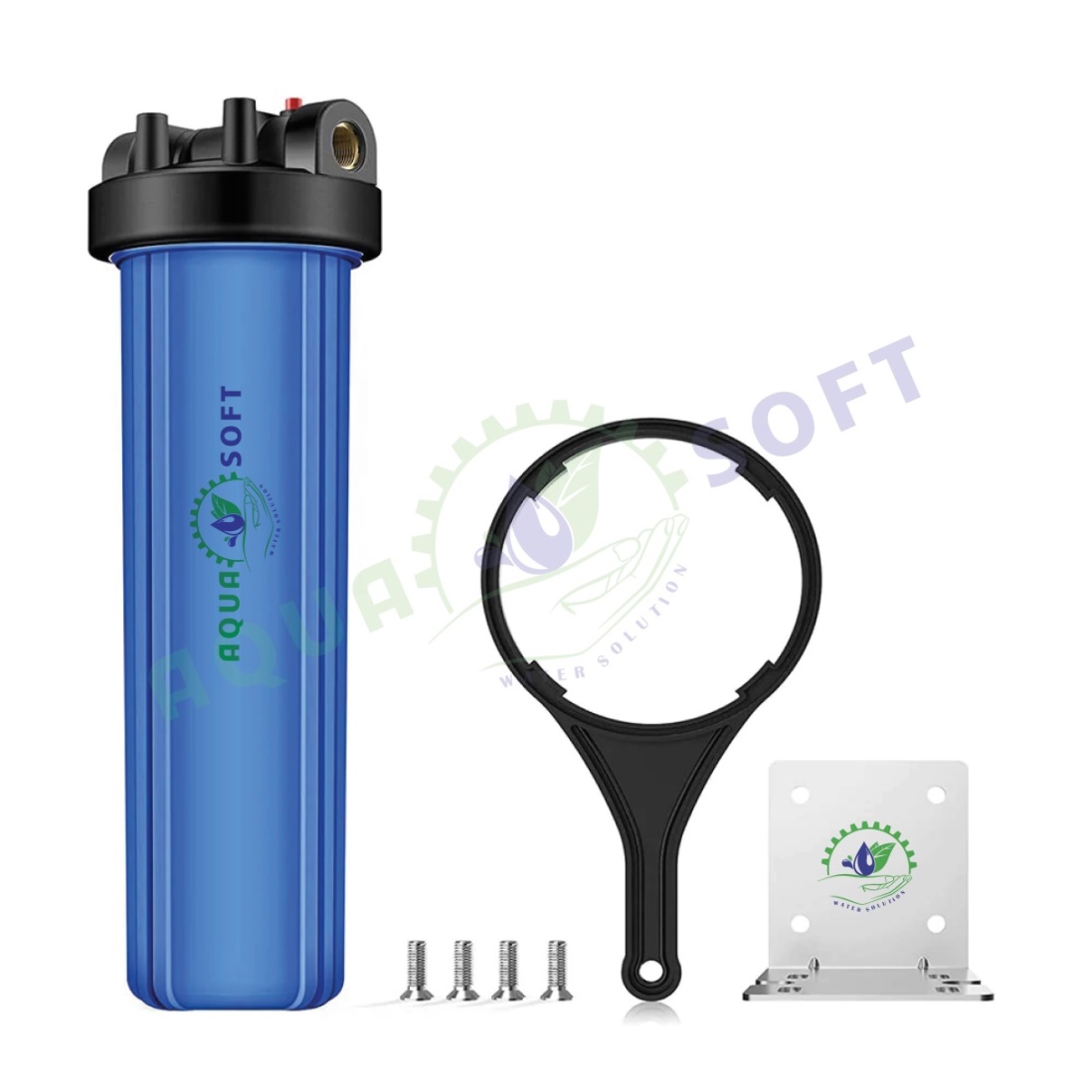

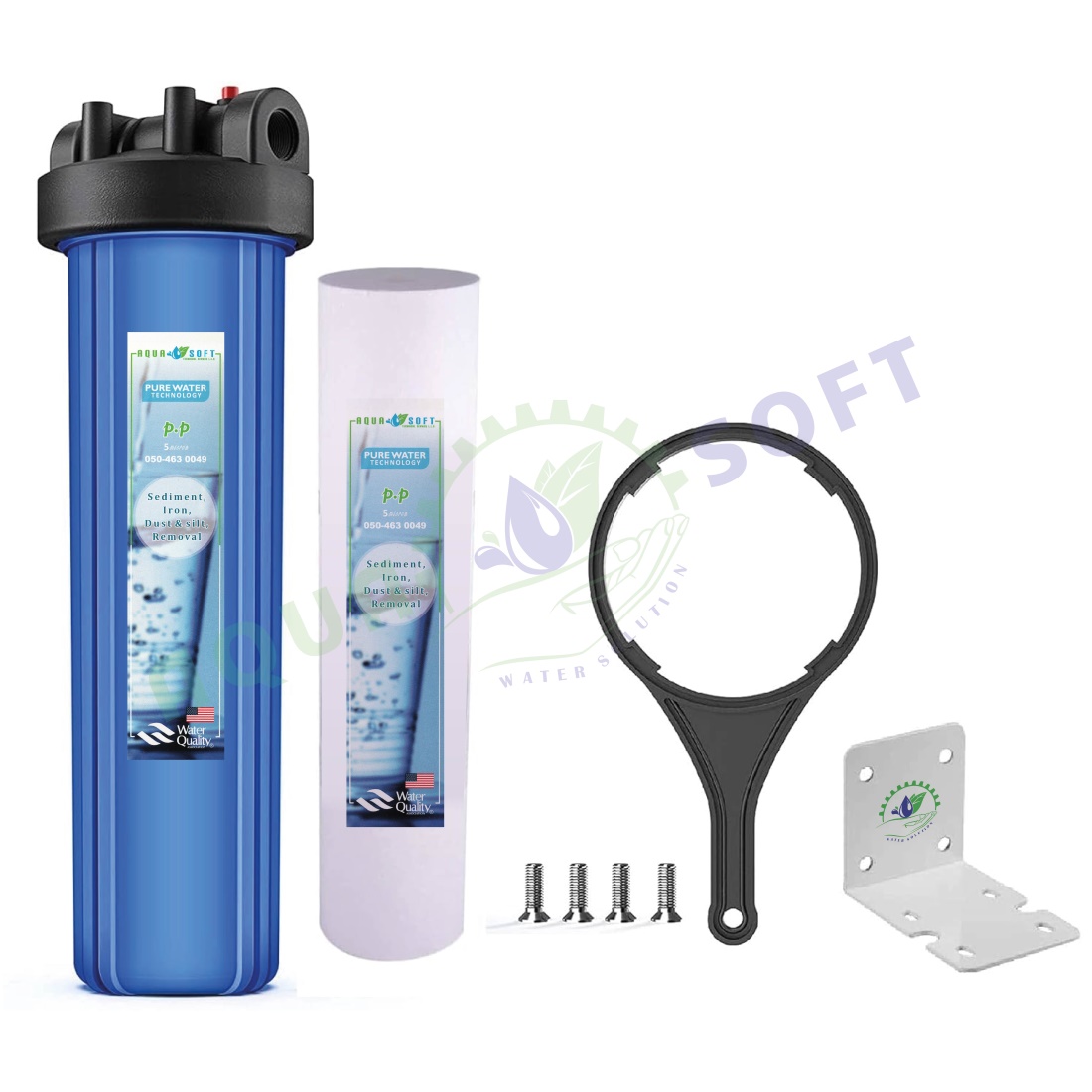

- Double O Ring 20 inch Big Blue20 inch
- 1 inch inlet and outlet ports

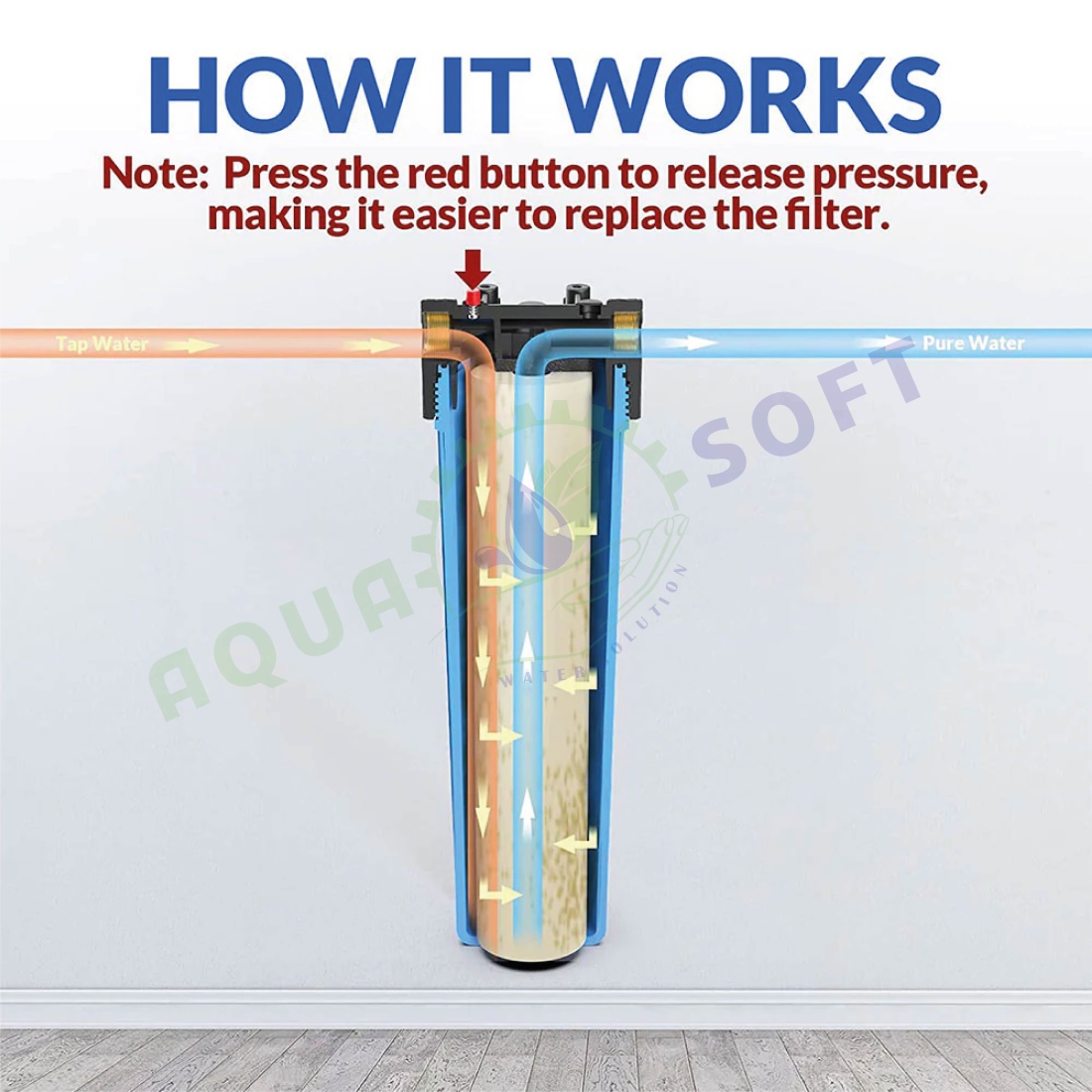

- Pressure release valve PLUS built-in PLUS PRESSURE GAUGE HOLE + Plug in 1/4″ NPT Pipe Thread PVC Allen Plug with o ring to close pressure gauge hole if not needed.

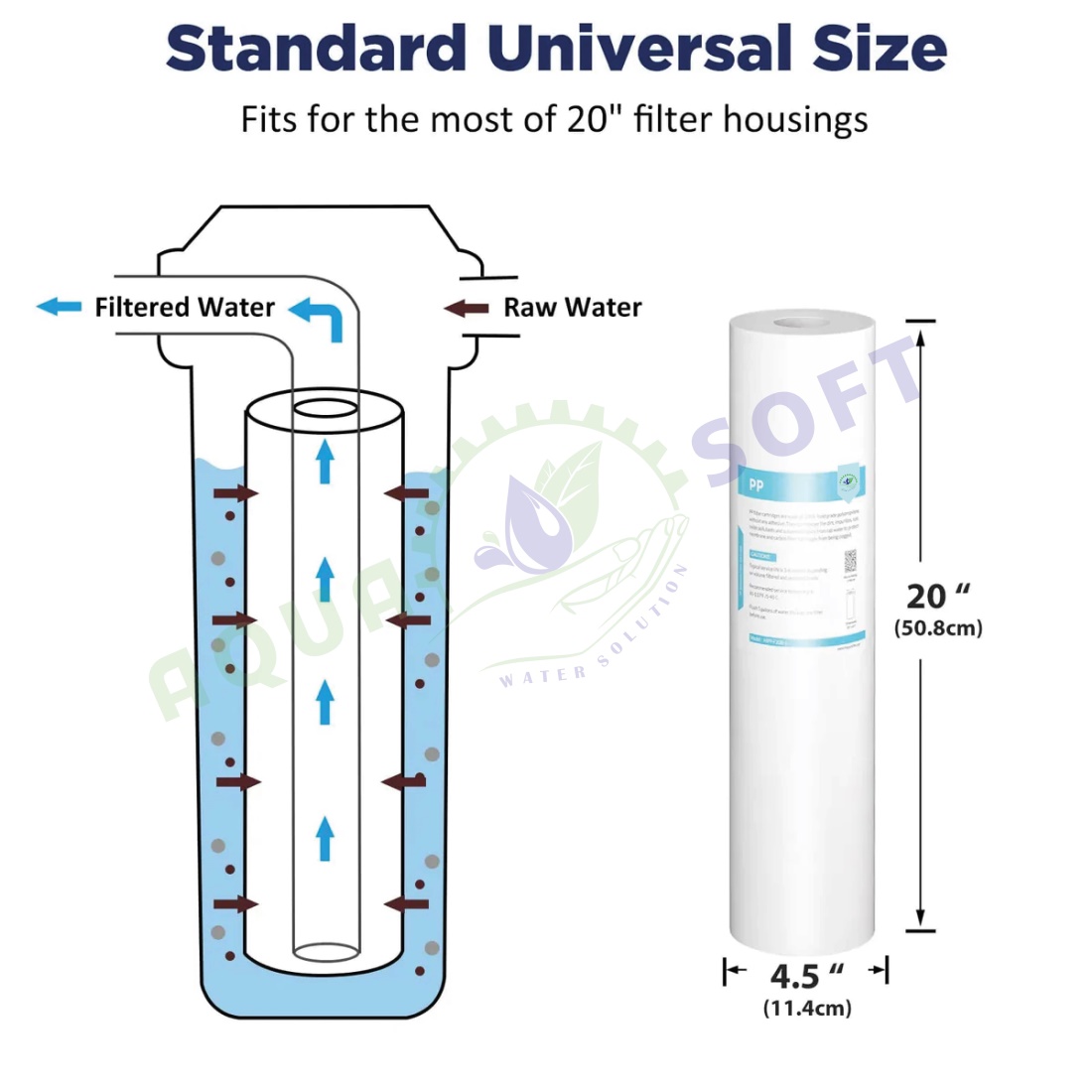

- Accepts 20 inch x 4.5 inch diameter cartridges
- Maximum Temperature: 125°F
- Maximum Pressure: 90 psi
- Blue Housing: polypropylene
- Black Cap: polypropylene
- Double Black O-ring
- Style 77(mm) x 77(mm)
Stage 1: Big-Blue Pre-Filters
Aqua SoftPro the first stage is 5 microns pre-filter designed to remove sediment as well as other biological contaminants. It comes in two options with varying proportions of flow rate and sediment removal.
Why Big-Blue Jumbo Filters?
Aqua SoftPro Natural well water does not undergo preliminary testing or treatment. The source of your well water can be changed at any time from contaminants entering the aquifer or water source. Aqua SoftPro Big-Blue filter systems allow you to build a customized system made just for you and your family. Jumbo Filter Systems deliver pure, fresh, clean tasting water to assure your family’s health and peace of mind.
Benefits of a 1-Stage, 20-Inch Filtration System:
- Effective Single-Purpose Filtration:
- Targeted Removal: Ideal for specific types of contaminants depending on the filter media used (e.g., sediment, chlorine).
- High Flow Capacity:
- Large Filter Size: The 20-inch filter can handle higher flow rates, making it suitable for applications with high water usage.
- Extended Filter Life:
- Increased Capacity: The larger filter has a greater capacity to hold contaminants, extending the time between replacements.
- Improved Water Quality:
- Focused Filtration: Single-stage systems can significantly improve water quality by addressing a particular issue effectively.
- Simplified Maintenance:
- Easier to Manage: With only one filter to replace, maintenance is straightforward and less frequent compared to multi-stage systems.
- Cost-Effective:
- Lower Initial Cost: Generally, a 1-stage system will be less expensive than multi-stage systems.
A 1-stage, 20-inch filtration system is a good choice for applications where you need to address a specific water quality issue efficiently, with the added benefits of high flow capacity and extended filter life due to the larger filter size.
